Vibration Sensor Library for Proteus – Free Download for Proteus Library

Introduction

If you're working on embedded or electronics projects and want to simulate vibration detection in Proteus, this post is just what you need! Today, I’ll walk you through downloading, installing, and using the Vibration Sensor Library for Proteus, complete with the essential VibrationSensorTEP.HEX file that makes your simulations come alive.

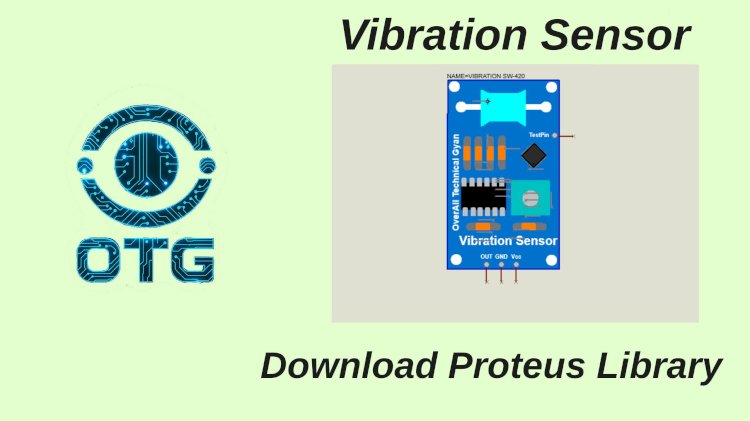

This library allows you to simulate popular vibration sensors like the SW-420, making it ideal for designing alert systems, alarms, or smart electronics projects in a virtual environment before moving to real hardware.

What’s Inside the Library?

Once you download and extract the ZIP file, you’ll get:

• VibrationSensorTEP.LIB

• VibrationSensorTEP.IDX

• VibrationSensorTEP.HEX

Each file plays a role:

• The .LIB and .IDX files define the Proteus model.

• The .HEX file contains the firmware logic for realistic sensor behavior during simulation.

How to Install the Library in Proteus 8

1. Extract the ZIP file.

2. Copy the following files to your Proteus library directory:

   • VibrationSensorTEP.LIB

   • VibrationSensorTEP.IDX
     Default Path:

   C:\Program Files (x86)\Labcenter Electronics\Proteus 8 Professional\LIBRARY

3. Restart Proteus to load the new component.

How to Use the Vibration Sensor in Simulation

1. Open Proteus and click on Pick Devices.

2. Search for "Vibration Sensor".

3. Add it to your Proteus workspace.

4. Double-click the sensor to edit its properties.

5. In the Program File section, browse and load the included VibrationSensorTEP.HEX file.

6. Connect it to a microcontroller like Arduino UNO, and simulate motion-triggered responses (LEDs, buzzers, etc.).

Example Use Case

Use this sensor in Arduino projects to simulate:

• Earthquake detectors

• Smart door alarms

• Anti-theft vibration alert systems

Sample Arduino code and wiring diagrams can be easily created around this sensor once it's integrated into Proteus.

Coming Soon: Video Tutorial

We’re working on a detailed video guide that shows the step-by-step simulation of this sensor with an Arduino UNO in Proteus. Subscribe to our YouTube channel - Overall Technical Gyan so you don't miss it!

Conclusion

The Vibration Sensor Library for Proteus is a handy tool for anyone building projects that rely on motion or shock detection. With this library and the included HEX file, you can simulate real-time behavior and troubleshoot your designs before moving to hardware.

Save time, improve accuracy, and enhance your simulation experience — all with this simple library integration.

Download the Library

Click the link below to get your free download. For a step-by-step guide on how to install this library in Proteus 8, check out the full post. How to Download and install Library in Proteus (overalltechnicalgyan.com)
