Arduino UNO R3 – Enhanced Proteus Model
Hello to all Proteus enthusiasts!
I'm excited to share with you the latest Arduino UNO R3 model designed specifically for Proteus simulation. This updated model is based on the AVR VSM from Proteus, which is widely used for simulating Atmel microcontrollers.
While many Arduino models are already available online, including some on this site, they typically use the default AVR simulation model. What sets this version apart is its improved graphical appearance — carefully crafted to resemble the real Arduino UNO more closely.

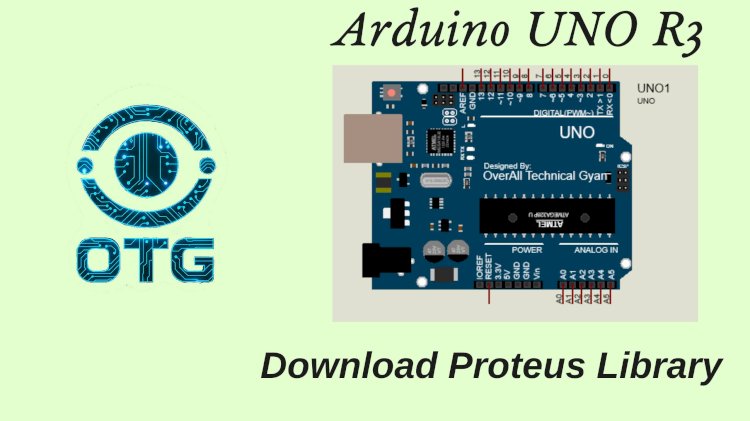

Arduino UNO R3 – Proteus Model
I've worked to make this model not only more visually accurate but also more intuitive in its interface. Many of the models include animated features to enhance the simulation experience and give you a more realistic interaction, just like working with physical hardware.
Download the Library
Click the link below to get your free download. For a step-by-step guide on how to install this library in Proteus 8, check out the full post. How to Download and install Library in Proteus (overalltechnicalgyan.com)
